CommonweaLth Railways

GM1 Class

• GM1-GM11 (11 units) built 1951-1952
• Model ML-1, 1,435mm-gauge, A1A-A1A diesel-electric, 1,500hp

As Australia’s pioneer streamliners these 11 locomotives were also the first mainline diesel-electrics for the Commonwealth Railways. They were purchased to help improve long distance services across the Trans Australia Railway between Port Augusta and Kalgoorlie, where the remote and arid conditions coupled with the immense distances, made supplying water for the pre-existing steam locomotive fleet a real trial. These were also the first diesel locomotives built by Clyde Engineering following their acquisition of the domestic license to market products of the Electro-Motive Division (EMD) of US firm, General Motors. Like most Clyde/EMD locomotives, the design of the GM1 Class was heavily adapted to suit Australian conditions. Based on the EMD F series, the GM1 Class were designed longer and shorter than the American version. Southern Shorthaul’s GM10 is arguably the oldest locomotive in commercial service on any Australian main line today.

• GM1 – Rail Heritage WA, Bassendean (display)
• GM2 – National Railway Museum, Port Adelaide (display)
• GM3 – Southern Shorthaul Railroad (stored at Lithgow)

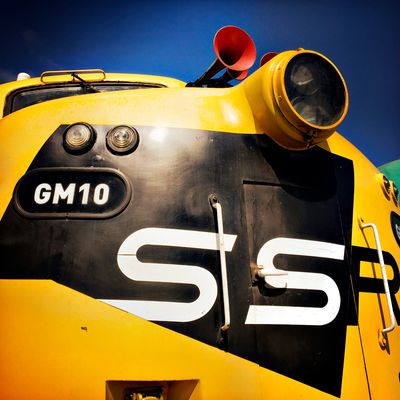

• GM10 – Southern Shorthaul Railroad (in service)
• GM4-GM9, GM11 – Scrapped

NSU Class

• NSU51-NSU64 (14 units) built 1953-1955
• 1,067mm gauge, A1A-A1A diesel-electric, 840hp

Similar to the investment in the GM1 Class for standard-gauge operations, the Commonwealth Railways (CR) a couple of years later ordered 14 Sulzer-powered diesel-electric locomotives from the UK-based Birmingham Railway Carriage and Wagon Company for narrow-gauge service. Although of a vaguely similar form to the GM1s, the NSU Class were a smaller, lighter, less powerful locomotive, intended to operate the narrow-gauge Central Australia and isolated Northern Australia Railways. Following the absorption of the CR into the Australian National Railways in 1975, some NSUs were transferred for use on some of the former South Australia Railways narrow-gauge branch lines centred on Peterborough and Gladstone. Remarkably, all 14 members of the class have survived into the 21st Century, although their condition and status varies wildly with some operable and preserved in museums, and others left exposed to the elements, having not been touched in years.

• NSU51, NSU54 – Pichi Richi Railway (stored Quorn)
• NSU52 – Pichi Richi Railway (preserved operational)
• NSU53 – Old Ghan Heritage Railway & Museum, Alice Springs (on display – Stuart Highway)
• NSU55 – Steamtown Heritage Rail Museum, Peterborough (display)
• NSU56, NSU57, NSU60 – Marree and District Progress Association, Marree (display)
• NSU58, NSU59, NSU64 – Old Ghan Heritage Railway & Museum, Alice Springs (stored)
• NSU61 – National Railway Museum, Port Adelaide (display)
• NSU62 – Farina Station (preserved display)
• NSU63 – Adelaide River Railway Heritage Precinct, Adelaide River (display)

GM12 Class

• GM12-GM47 (36 units) built 1955-1968
• Model A16C, 1,435/1,600mm-gauge, Co-Co diesel-electric, 1,800hp

Following the success of the GM1 Class, the Commonwealth Railways sought to expand its fleet as traffic and, over the years routes expanded. By 1955, the Clyde/EMD product had been improved and upgraded and the GM12s reflected those improvements, notably being more powerful. Despite ownership changes and the influx of many new, and more advanced locomotives, the GM12 Class has continued to operate in service in South Australia almost without break, although today GM37, GM43 and GM47 are the only examples still in regular use in the state. Other examples of the class, however, can now be found in regular service interstate.

• GM12 – Southern Shorthaul Railroad (stored at Bendigo)
• GM19 – RailPower (stored at Goulburn)
• GM22, GM27 – Southern Shorthaul Railroad (in service)
• GM28, GM36 – Seymour Rail Heritage Centre (undergoing restoration)
• GM37, GM43, GM46, GM47 – Aurizon (in service)
• GM38, GM40, GM42, GM44-GM45 – Aurizon (stored)
• GM13-GM18, GM20, GM21, GM23-GM26, GM29-GM35, GM39, GM41 – Scrapped

CLF Class

• CLF1-CLF7 (7 units – rebuilt in 1992/93 from 1970s CL Class)
• Model AT26HC-2M, 1,435mm-gauge, Co-Co diesel-electric, 3,300hp

A more thorough retelling of the CL/CL/CLF Class story can be found here, but in summary these seven units were remanufactured by Morrison Knudsen Australia (MKA) in 1992/93 from former 1970s CL Class locomotives. As part of the deal, Australian National (AN) sold the CLs to MKA, with the rebuilt locomotives then being leased back to AN on a power-by-the-hour basis. The CLFs were thus returned to AN for freight service. Today, their use is intermittent, with two each owned by One Rail Australia, RailPower and Southern Shorthaul Railroad.

• CLF1 – Southern Shorthaul Railroad (stored at Bendigo, accident damage)
• CLF2 – RailPower (in service)
• CLF3 – Southern Shorthaul Railroad (in service)
• CLF4 – RailPower (stored at UGL Broadmeadow, accident damage)
• CLF5, CLF6 – Aurizon (in service)
• CLF7 – Scrapped

CLP Class

• CLP8-CLP17 (10 units – rebuilt in 1992/93 from 1970 CL Class)
• Model AT26HC-2M, 1,435mm-gauge, Co-Co diesel-electric, 3,300hp

Following on from the seven CLF Class locomotives, MKA then turned out ten remanufactured CLP Class units from its Whyalla factory during 1993. A more detailed article on these locomotives can be found here, but it is worth mentioning that these CLP units differed from the CLFs in having an increased fuel capacity, greater weight, higher gearing and provision of a head-end power unit. The latter feature for providing power supply to the coupled passenger carriages of the Ghan, Indian Pacific and Overland trains that CLPs were intended to haul. Like the CLFs, changes in ownership have left the CLP Class fleet split between owners and locations. Four are owned by One Rail Australia with two each owned by RailPower and Southern Shorthaul. Of course, there is also CLP10 which belongs to us, and is currently being restored at Cootamundra as CL17. Click here for more details.

• CLP8, CLP14, CLP16, CLP17 – Aurizon (in service)
• CLP9, CLP12 – Southern Shorthaul Railroad (in service)
• CLP10 – Streamliners Australia (undergoing restoration at Seymour)
• CLP11, CLP13 – RailPower (stored at Goulburn)
• CLP15 – Scrapped

Back to Streamliners in Australia

Last updated 12 August 2024
